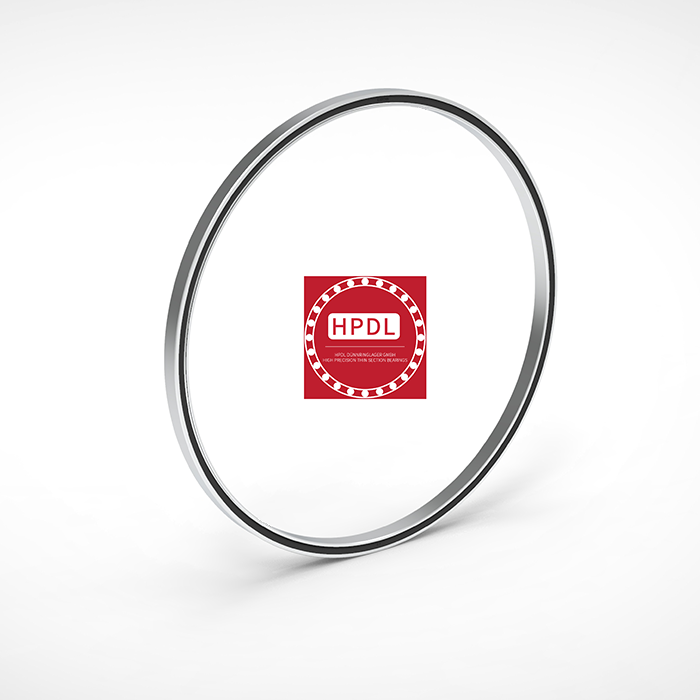

Fourpoint Contact Bearing 302A6D190
| HPDL-Type: | Fourpoint Contact Bearing 302A6D190 |
|---|---|
| ID: | 4.75"(120.65mm) |
| OD: | 5.375"(136.525mm) |
| Querschnitt: | 0.3125"x0.3125"(7.9375mmx7.9375mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 3380 |
| Ca(N): | 8450 |
| Cor(N): | 9020 |
| Coa(N): | 22580 |
| Gewicht(Kg): | 0.159 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
