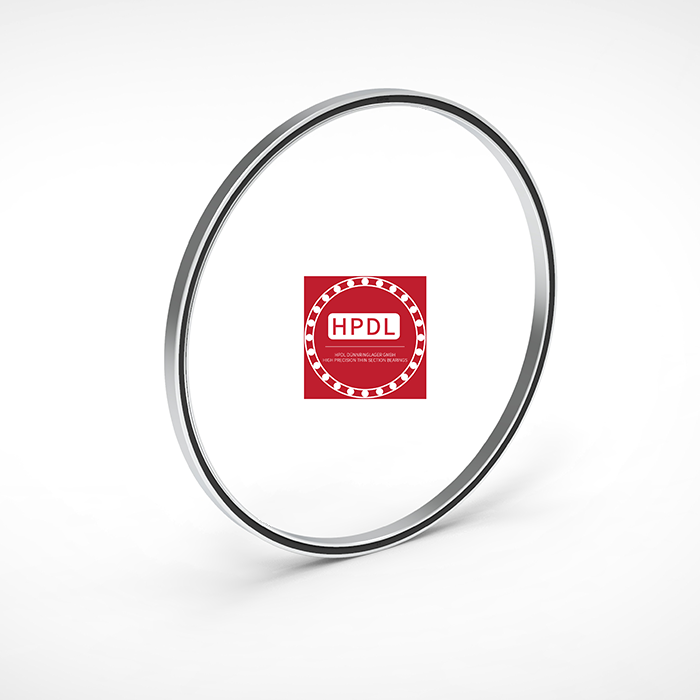

Deep Groove Ball Bearing 302A6CH30
| HPDL-Type: | Deep Groove Ball Bearing 302A6CH30 |
|---|---|
| ID: | 4.75"(120.65mm) |
| OD: | 5.375"(136.525mm) |
| Querschnitt: | 0.3125"x0.3125"(7.9375mmx7.9375mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 3380 |
| Ca(N): | / |
| Cor(N): | 9020 |
| Coa(N): | / |
| Gewicht(Kg): | 0.159 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Deep Groove Bearing is the same as other standard deep groove bearings, it is designed primarily for radial load application, and it just can withstand moderate axial (thrust) load in either direction.
Contact HPDL for more detials.
