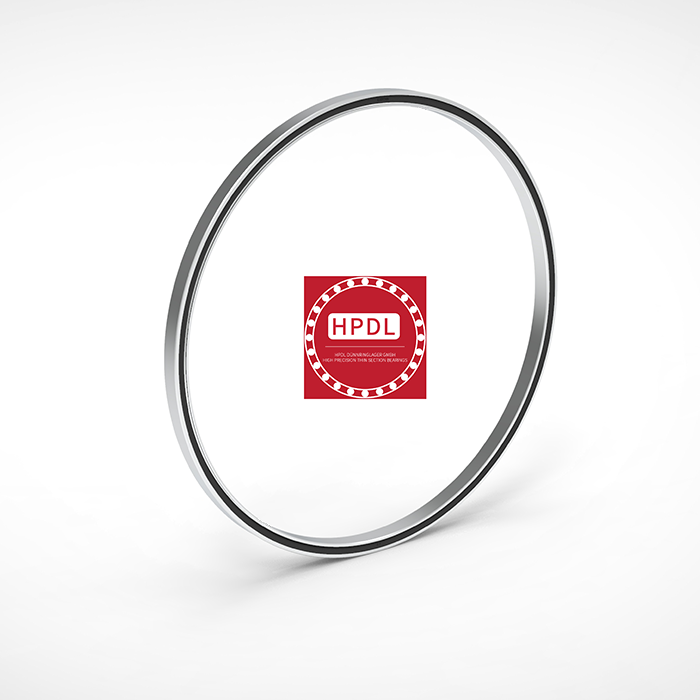

Fourpoint Contact Bearing 302A64B90
| HPDL-Type: | Fourpoint Contact Bearing 302A64B90 |
|---|---|
| ID: | 3,5"(88,9mm) |
| OD: | 4,125(104,775mm) |
| Querschnitt: | 0,3125"x0,3125"(7,9375mmx7,9375mm) |
| Dichtung: | Sealed |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 4510 |
| Ca(N): | 7070 |
| Cor(N): | 6850 |
| Coa(N): | 17160 |
| Gewicht(Kg): | 0,122 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
