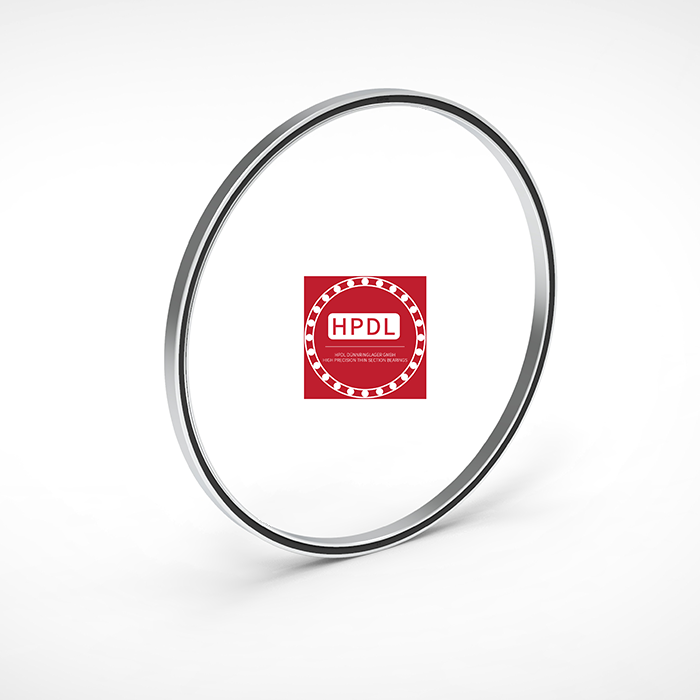

Fourpoint Contact Bearing 2AA5EB75
| HPDL-Type: | Fourpoint Contact Bearing 2AA5EB75 |
|---|---|
| ID: | 7"(177.8mm) |
| OD: | 7.75"(196.85mm) |
| Querschnitt: | 0.375"x0.375"(9.525mmx9.525mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Nylon |
| Cr(N): | 5560 |
| Ca(N): | 13910 |
| Cor(N): | 15780 |
| Coa(N): | 39430 |
| Gewicht(Kg): | 0.422 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
