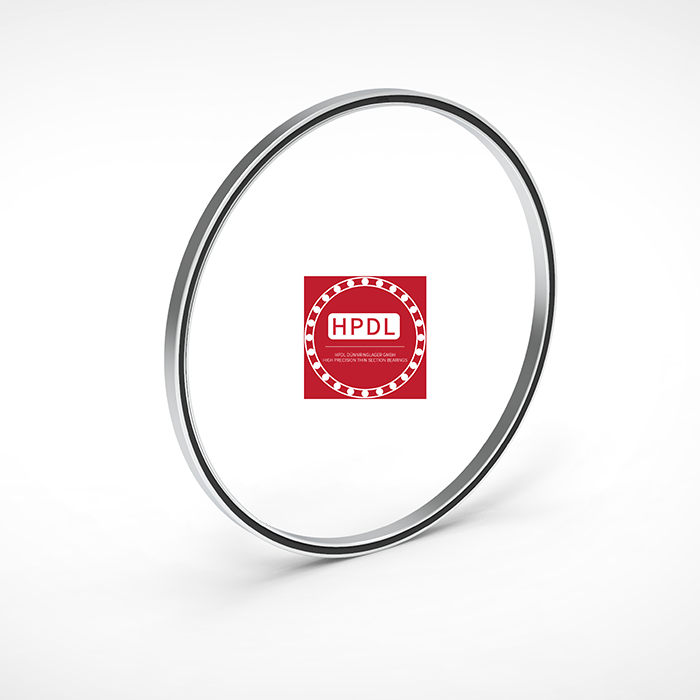

Fourpoint Contact Bearing 302A7AB90
| HPDL-Type: | Fourpoint Contact Bearing 302A7AB90 |
|---|---|
| ID: | 6.5"(165.1mm) |
| OD: | 7.125“(180.975mm) |
| Querschnitt: | 0.3125"x0.3125"(7.9375mmx7.9375mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Nylon |
| Cr(N): | 4130 |
| Ca(N): | 10400 |
| Cor(N): | 12270 |
| Coa(N): | 30720 |
| Gewicht(Kg): | 0.213 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
