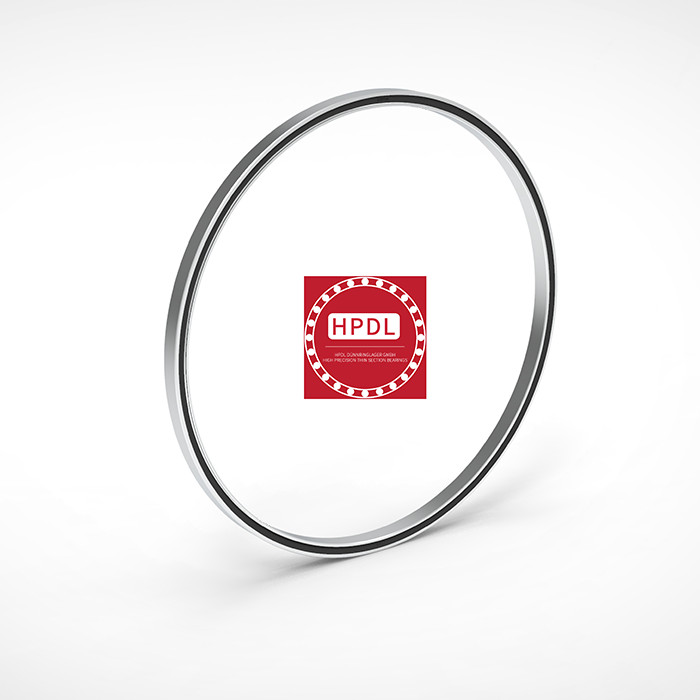

Fourpoint Contact Bearing 2AA4HD75
| HPDL-Type: | Fourpoint Contact Bearing 2AA4HD75 |
|---|---|
| ID: | 5.5"(139.7mm) |
| OD: | 6.25"(158.75mm) |
| Querschnitt: | 0.375"x0.375"(9.525mmx9.525mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 4800 |
| Ca(N): | 11960 |
| Cor(N): | 12580 |
| Coa(N): | 31380 |
| Gewicht(Kg): | 0.336 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
