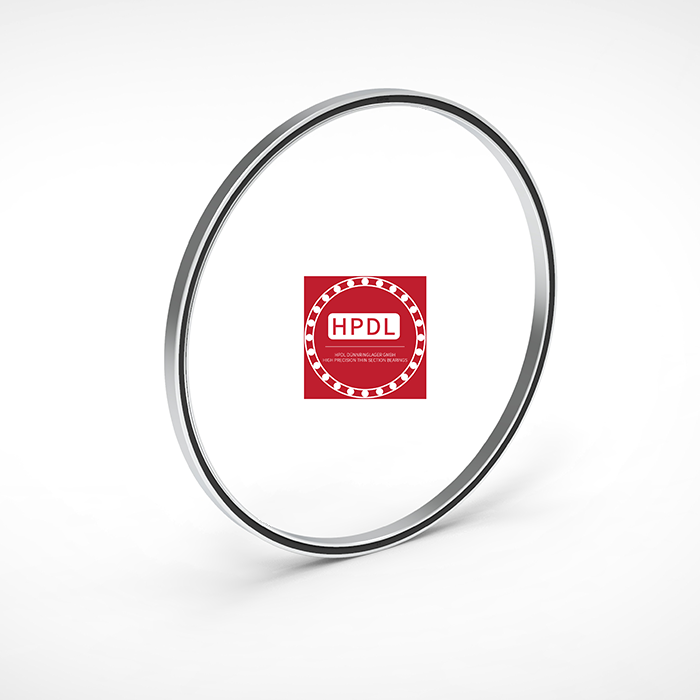

Deep Groove Ball Bearing 300E73B30
| HPDL-Type: | Deep Groove Ball Bearing 300E73B30 |
|---|---|
| ID: | 5"(127mm) |
| OD5: | 5.5"(139.7mm) |
| Querschnitt: | 0.250"x0.250"(6.35mmx6.35mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 2490 |
| Ca(N): | / |
| Cor(N): | 7070 |
| Coa(N): | |
| Gewicht(Kg): | 0.104 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung
The same as standard angular contact bearings, HPDL Angular Contact Bearing works well in radial or combined radial-thrust applications and it features a
circular pocket separator and a 30° contact
angle. The chief benefit of this kind of bearing is that it offers greater
thrust capacity than other two kinds of bearings. However the space will be
more limited because this kind of bearings is usually designed in pairs.
Contact HPDL for more detials.
