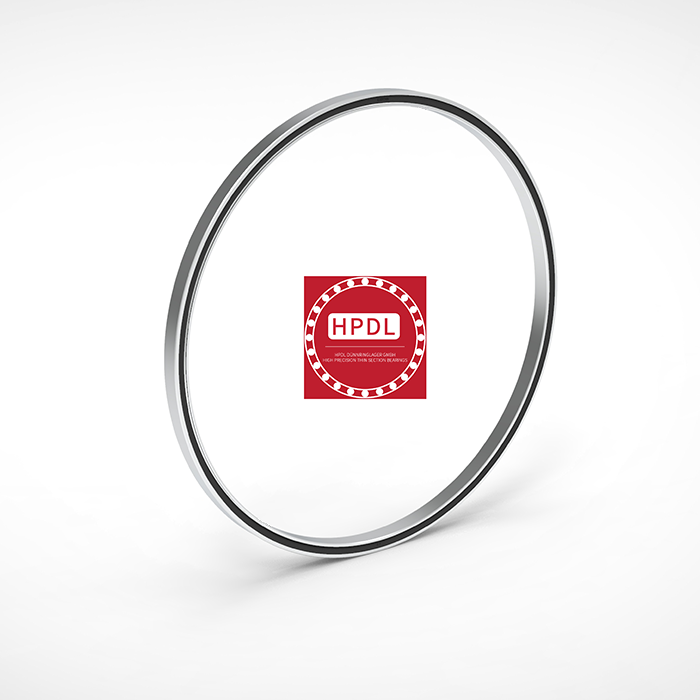

Fourpoint Contact Bearing 302A6CB90
| HPDL-Type: | Fourpoint Contact Bearing 302A6CB90 |
|---|---|
| ID: | 4.5"(114.3mm) |
| OD: | 5.125"(130.175mm) |
| Querschnitt: | 0.3125"0.3125"(7.9375mm7.9375mm) |
| Dichtung: | Close |
| Käfigewerkstoffe: | Brass |
| Cr(N): | 3290 |
| Ca(N): | 8220 |
| Cor(N): | 8670 |
| Coa(N): | 21690 |
| Gewicht(Kg): | 0.154 |
| Betriebstemperaturen: | -53℃~+120℃ |
Produktbeschreibung

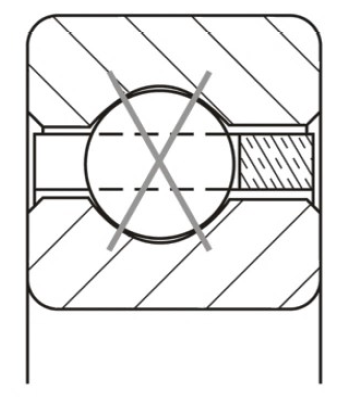

HPDL Four Point Contact Bearing is the most comprehensive product in our product range, it can provide more space (comparing with a pair of angular contact bearing), better performance under higher axial(thust) load(comparing with deep groove bearing), nowadays more than 55% HPDL bearings are Four Contact Bearing due to a single fourpoint contact bearing can often replace two bearings, providing
a simplified design.
Contact HPDL for more detials.
